BA033-12-D0-01

Name: BA033-12-D0-01
Brand: STASTO
SKU: BA033-12-D0-01
Price: 379.4 EUR
Availability: InStock

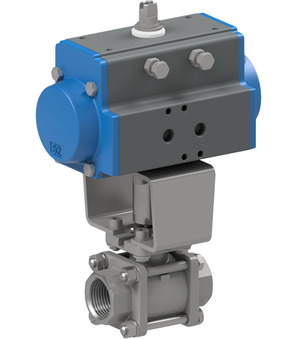

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052-H; High temperature design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.703 Kg
Short Itemnumber: BA03312D001

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-64bar; length 65mm; actuator PAD052-H; high temperature design

379,40 € 379.4 EUR 379,40 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA03312D001.stp

Download

710000-1/2" x 1.0

Ball valve made of stainless steel 710000-1/2"

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm

Add to Cart

PAD052-H x 1.0

Pneumatic actuator PAD052-H

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3789 x 1.0
