STASTO Allgemeine Preisliste (EUR)
BA033-10-D0-04

BA033-10-D0-04

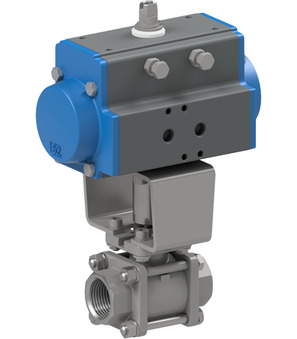

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.82 Kg
Short Itemnumber: BA03310D004
https://www.stasto.eu/web/image/product.template/239334/image_1920?unique=dfed689

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052; Mounting kits Stainless steel

481,60 € 481.6 EUR 481,60 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
All specifications (5)
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Brand STASTO
Ball valve made of stainless steel 710000-1"
710000-1" x 1.0 Pcs
Ball valve made of stainless steel 710000-1"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
ATE0504 x 1.0 Pcs
ATE0504
Mounting bridge; Material 1.4301; Flange 1 F05; Flange 2 F04; Height 60mm
IV/00204/19 x 1.0 Pcs
IV/00204/19
Bolt; 1.4305; Diameter 20mm; Height of the bolt 52mm; Male square 11mm; Height of the male square 11mm; Two flat 8mm; Two flat height 11,5mm
