Ball valve with electrical actuator Series 8E004 Store

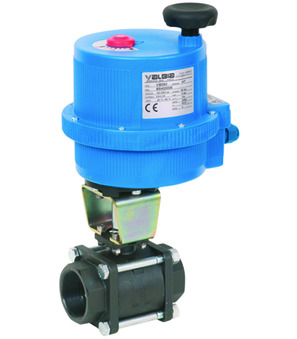

Ball valve with electrical actuator BA028-10-CH

Name: Ball valve with electrical actuator BA028-10-CH
Brand: STASTO
SKU: BA028-10-CH
Price: 1048.5 EUR
Availability: InStock

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Incl. Positioner 4-20mA/0-10V; RP 1"; DN 25mm; Pressure range 0...40bar; Length 92mm; Operating time 8s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.8 Kg
Short Itemnumber: BA02810CH

ball valve with electrical actuator series 8E004; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; incl. positioner 4-20mA/0-10V; RP 1"; DN 25mm; pressure range 0...40bar; length 92mm; operating time 8s; voltage 100-240VAC

1.048,50 € 1048.5 EUR 1.048,50 €

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Voltage
- 100-240VAC
Pressure range
- 0...40 bar
Operating time
- 8 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1"
DN	25 mm
Length	92 mm
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...40 bar
characteristics
Operating time	8 s

713000-1" x 1.0

Ball valve made of steel 713000-1"

Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm

Add to Cart

VB030-H-P0S x 1.0

Electrical actuator VB030-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67

Add to Cart

RI3030 x 1.0
