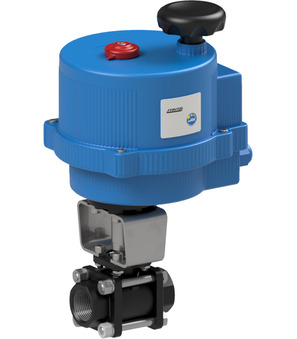

Ball valve with electrical actuator BA028-10-0L-01

Name: Ball valve with electrical actuator BA028-10-0L-01
Brand: STASTO
SKU: BA028-10-0L-01

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Control ball V 30...60°; Operating time 119s; Voltage 15-30V/50-60Hz, 12-48VDC

Intrastat No.: 84818081
Country of origin: France
Short Itemnumber: BA028100L01

ball valve with electrical actuator; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; RP 1"; DN 25mm; pressure range 0-40bar; length 92mm; Control ball V 30...60°; operating time 119s; voltage 15-30V/50-60Hz, 12-48VDC

On request

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Voltage
- 24VAC/DC
Pressure range
- 0...40 bar
Actuator
- VB030L
Operating time
- 8 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...40 bar
Female thread	RP 1"
DN	25 mm
Length	92 mm

All specifications (7)

Spezifikationen
Spare Parts

Pressure range	0...40 bar
Female thread	RP 1"
DN	25 mm
Length	92 mm
Operating time	8 s
Voltage	24VAC/DC
Brand	STASTO

BA028-10-L-01 x 1.0 Pcs

Ball valve made of steel BA028-10-L-01

Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Control ball V 30...60°

ER100-0N119-Q22 x 1.0 Pcs

Electrical actuator ER100-0N119-Q22

Electrical actuator Series ER; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP66; Torque 100Nm; Operating time 119s; Flange ISO5211 F05/F07-Stern 22mm; Voltage 15-30V/50-60Hz, 12-48VDC

ATSV0704 x 1.0 Pcs
