BA010-12-2S0

BA010-12-2S0

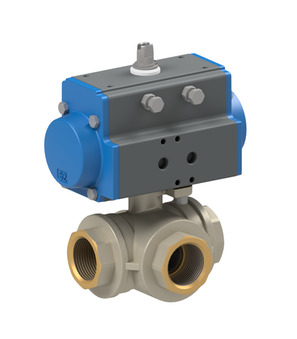

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; housing, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-16bar; length 77mm; actuator PAS0525; ball T; flow path 02

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.443 Kg
Short Itemnumber: BA010122S0
https://www.stasto.eu/web/image/product.template/177468/image_1920?unique=3970b0b

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; housing, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-16bar; length 77mm; actuator PAS0525; ball T; flow path 02

320,80 € 320.8 EUR 320,80 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 3500-1/2"
    3500-1/2" x 1.0
    Ball valve made of brass 3500-1/2"
    Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 1/2"; Nominal diameter 15mm; Pressure range 0-30bar; Length 77mm; Ball T
    Add to Cart
    Pneumatic actuator PAS0525
    PAS0525 x 1.0
    Pneumatic actuator PAS0525
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
