Mounted pilot valve Series ABS77/ABS78 Store

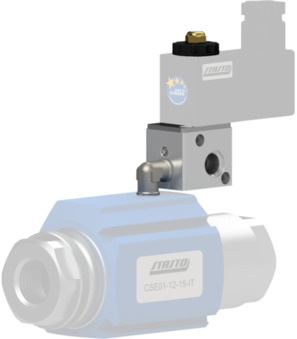

Mounted pilot valve ABS77-C001-03-C002-31-LV-2

Mounted pilot valve ABS77-C001-03-C002-31-LV-2

ABS77
Mounted pilot valve Series ABS; Silencer; Suitable for Coax valve Series CSE; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.154 Kg
Short Itemnumber: ABS77C00103C00231LV2

ABS77
mounted pilot valve series ABS; silencer; suitable for coax valve series CSE; 3/2-Wegemagnetventil (PS125-18-C); standard coil C001; connector size 22mm
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

68,30 € 68.3 EUR 68,30 €

Connector size
- 22 mm
Design
- With integrated LED-yellow and VDR
Voltage
- 24VDC / 48V/50-60Hz
Coil
- C001

This combination does not exist.

Availability:

Designs
Connector size	22 mm
design
Design	With integrated LED-yellow and VDR
Electrical key figures
Voltage	24VDC / 48V/50-60Hz
characteristics
Coil	C001
