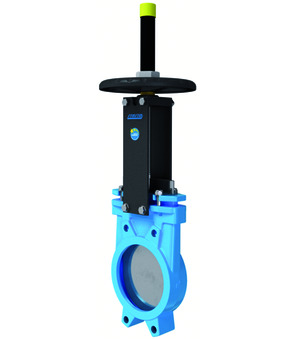

Knife gate valve with handwheel AB1VN2H2-5-200-BK
knife gate valve with handwheel series AB1V; non rising stem; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar
Country of origin: Spain
Short Itemnumber: AB1VN2H25200BK
knife gate valve with handwheel series AB1V; non rising stem; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 200 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
