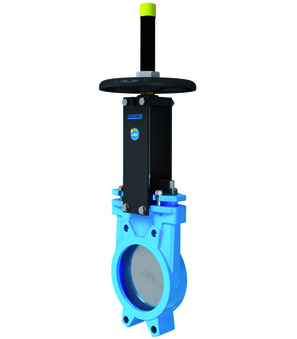

Knife gate valve with handwheel AB1V2H5-5N-80-B
knife gate valve with handwheel series AB1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 80mm; length 50mm; pressure range 0...10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 9.0 Kg
Short Itemnumber: AB1V2H55N80B
Country of origin: Spain
Weight: 9.0 Kg
Short Itemnumber: AB1V2H55N80B
knife gate valve with handwheel series AB1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 80mm; length 50mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 50 mm |
| Length | 40 mm |
| pressure | |
| Pressure range | 0...10 bar |
No spare parts are available for this product.
