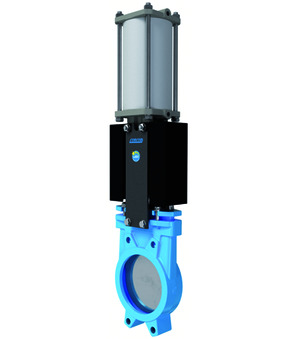

Knife gate valve with double acting actuator AB1N2H5-5N-125-PIB01
knife gate valve with double acting actuator series AB1N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 125mm; length 50mm; pressure range 0...10bar; Flange with through holes; prepared for 2 inductive limit switches M18 MSU03, MSU04, MSU05
Country of origin: Spain
Weight: 21.0 Kg
Short Itemnumber: AB1N2H55N125PIB01
knife gate valve with double acting actuator series AB1N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 125mm; length 50mm; pressure range 0...10bar; Flange with through holes; prepared for 2 inductive limit switches M18 MSU03, MSU04, MSU05
| dimension | |
|---|---|
| DN | 80 mm |
| Length | 50 mm |
| pressure | |
| Pressure range | 0...10 bar |
