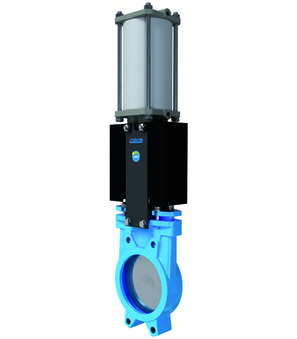

Knife gate valve with double acting actuator AB1N2H5-5N-100-PIB01
Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 100mm; Length 50mm; Pressure range 0...10bar; Flange with through holes; Prepared for 2 inductive limit switches M18 MSU03, MSU04, MSU05
Country of origin: Spain
Weight: 12.45 Kg
Short Itemnumber: AB1N2H55N100PIB01
knife gate valve with double acting actuator series AB1N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 100mm; length 50mm; pressure range 0...10bar; Flange with through holes; prepared for 2 inductive limit switches M18 MSU03, MSU04, MSU05
| dimension | |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| pressure | |
| Pressure range | 0...10 bar |
