Knife gate valve with double acting actuator AB1N2H2-5-200-B

Price.

999.999,00 €
STASTO Allgemeine Preisliste (EUR)
Knife gate valve with double acting actuator Series AB1N Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Knife gate valve with double acting actuator Series AB1N
  6. AB1N2H2-5-200-B

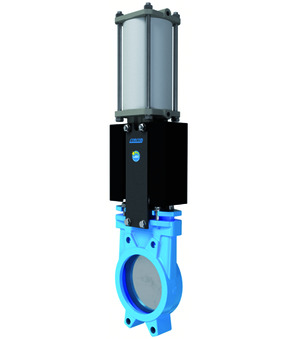

Knife gate valve with double acting actuator AB1N2H2-5-200-B

Knife gate valve with double acting actuator AB1N2H2-5-200-B

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0...7bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 5.03 Kg
Short Itemnumber:AB1N2H25200B
https://www.stasto.eu/web/image/product.template/54559/image_1920?unique=3f7130e

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0...7bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 200 mm
Length 60 mm
pressure
Pressure range 0...7 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Knife gate valve with double acting actuator Series AB1N_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie AB1N_DE.pdf
Download
No spare parts are available for this product.
