STASTO Allgemeine Preisliste (EUR)
Knife gate valve with double acting actuator Series AB1N Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Knife gate valve with double acting actuator Series AB1N
  6. AB1N2H2-5-100-PM-B-MSU01A

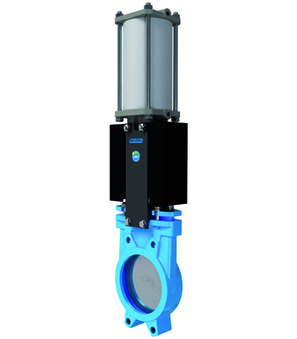

AB1N2H2-5-100-B-PM-MSU01A

AB1N2H2-5-100-B-PM-MSU01A

AB1N2H2-5-100-PM-B
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 100mm; length 50mm; pressure range 0...10bar; prepared for 2 mechanical switches MSU01A
MSU01A
electrical position indication series MSU; suitable for knife gate valve; Built-on mechanical limit switch (1 pieces)

Intrastat No.: 84818061
Country of origin: Spain
Weight: 13.254 Kg
Short Itemnumber: AB1N2H25100PMBMSU01A
https://www.stasto.eu/web/image/product.template/218330/image_1920?unique=5c74a79

AB1N2H2-5-100-PM-B
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 100mm; length 50mm; pressure range 0...10bar; prepared for 2 mechanical switches MSU01A
MSU01A
electrical position indication series MSU; suitable for knife gate valve; Built-on mechanical limit switch (1 pieces)

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Soft sealed
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 50 mm
function
Function NC/NO contact
Electrical key figures
Voltage max. 230VAC/DC
pressure
Pressure range 0...10 bar
materials
Soft sealed EPDM
characteristics
Switch design Mechanical limit switch (1 Pieces)
Medium temperature -5...+90 °C
