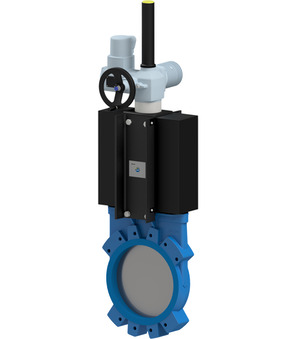

Knife gate valve with electric actuator AB1EM2I2-5-200-01
Knife gate valve with electric actuator Series AB1EM2H2-5-B; ATEX zone 2 and 22; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…8bar; Actuator AUMA SAEx07.6
Intrastat No.: 84818061
Country of origin: Spain
Weight: 42.0 Kg
Short Itemnumber: AB1EM2I2520001
Country of origin: Spain
Weight: 42.0 Kg
Short Itemnumber: AB1EM2I2520001
knife gate valve with electric actuator series AB1EM2H2-5-B; ATEX zone 2 and 22; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0…8bar; actuator AUMA SAEx07.6
| Design | ATEX |
No spare parts are available for this product.
