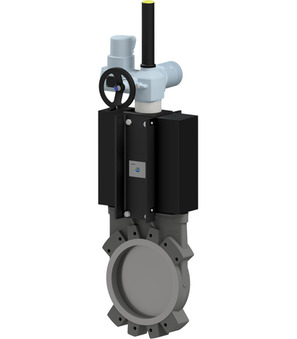

Knife gate valve with electric actuator A5EB2H3-5V-200
knife gate valve with electric actuator series A5EB2I3-5V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed FKM; packing PTFE-synthetic/FKM; flange ANSI150; unidirectional sealed; voltage 230V/50Hz; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0…7bar; actuator AUMA SA07.6
Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: A5EB2H35V200
Country of origin: Spain
Short Itemnumber: A5EB2H35V200
knife gate valve with electric actuator series A5EB2I3-5V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed FKM; packing PTFE-synthetic/FKM; flange ANSI150; unidirectional sealed; voltage 230V/50Hz; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0…7bar; actuator AUMA SA07.6
| dimension | |
|---|---|
| DN | 200 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...7 bar |
| characteristics | |
| Actuator | AUMA SA07.2 |
No spare parts are available for this product.
