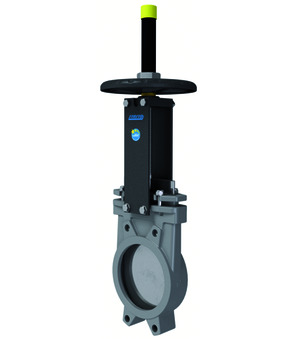

Knife gate valve with handwheel A1V2I2-5-300
Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0...6bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 52.5 Kg
Short Itemnumber:A1V2I25300
Country of origin: Spain
Weight: 52.5 Kg
Short Itemnumber:A1V2I25300
knife gate valve with handwheel series A1V; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0...6bar
| dimension | |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...6 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Knife gate valve_EN.pdf
Download
Assembly and Operating Instructions
1Assembly and operating instructions_Knife gate valve_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Knife gate valve_EN.pdf
Download
CAD / 3D
1CADSTEP_A1V2I25300.stp
Download
No spare parts are available for this product.
