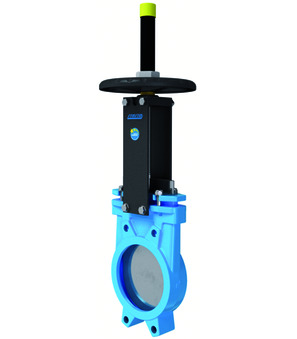

Knife gate valve with handwheel A1V2H5-5-200-B

Knife gate valve with handwheel A1V2H5-5-200-B

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+90°C; DN 200mm; Length 60mm; Pressure range 0-10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 45.0 Kg
Short Itemnumber: A1V2H55200B
https://www.stasto.eu/web/image/product.template/144283/image_1920?unique=28a72e1

knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -10...+90°C; DN 200mm; length 60mm; pressure range 0-10bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Pressure range 0...10 bar
DN 200 mm
Length 60 mm
No spare parts are available for this product.
