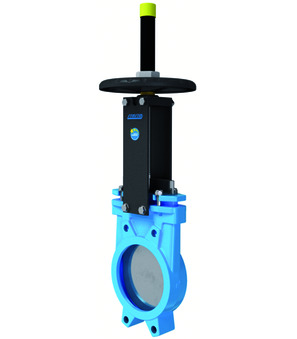

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0...5bar
Country of origin: Spain
Weight: 12.23 Kg
Short Itemnumber: A1V2H25450B
Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0...5bar
Technical specifications
| Pressure range | 0...5 bar |
|---|---|
| DN | 450 mm |
| Length | 106 mm |
| Medium temperature | -5...+90 °C |
| Pressure range | 0...5 bar |
| DN | 450 mm |
| Length | 106 mm |
| Medium temperature | -5...+90 °C |
| Brand | STASTO |
A1V2H2-5-450-B
