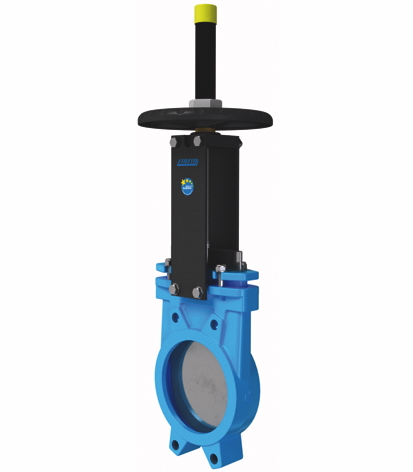

A1V2H2-5-250-PIB-MSU03/2

A1V2H2-5-250-PIB-MSU03/2

A1V2H2-5-250-PIB
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0...6bar
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

Plattenschieber mit Handrad Serie A1V-PIB
Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: A1V2H25250PIBMSU032
https://www.stasto.eu/web/image/product.template/226745/image_1920?unique=afd6b5a

A1V2H2-5-250-PIB
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0...6bar
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Cable length
  • Function
  • Voltage
  • Pressure range
  • Switch design
  • Medium temperature
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 250 mm
Length 70 mm
Medium temperature -5...+90 °C
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 250 mm
Length 70 mm
Medium temperature -5...+90 °C
Cable length 2m
Function NO PNP
Switch design Inductive proximity switch (2 Pieces)
Voltage 10-30VDC
Brand STASTO

A1V2H2-5-250-PIB-MSU03/2

Documents

5 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Danish / Dansk
ZIP

Data Sheets

2
German / Deutsch
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Greek / Ελληνικά
ZIP

Data Sheets

2
English
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Spanish / Español
ZIP

Data Sheets

2
Finnish / Suomi
ZIP

Data Sheets

2
French / Français
ZIP

Data Sheets

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2
Hungarian / Magyar
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Italian / Italiano
ZIP

Data Sheets

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2
Dutch / Nederlands
ZIP

Data Sheets

2
Polish / Język polski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Romanian / română
ZIP

Data Sheets

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2
Swedish / Svenska
ZIP

Data Sheets

2
Knife gate valve with handwheel A1V2H2-5-250-PIB
A1V2H2-5-250-PIB x 1.0 Pcs
Knife gate valve with handwheel A1V2H2-5-250-PIB
Knife gate valve with handwheel Series A1V-PIB; Wafer type; Rising stem; Body Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; Length 70mm; Pressure range 0...6bar
Electrical position indication MSU03/2
MSU03/2 x 1.0 Pcs
Electrical position indication MSU03/2
Electrical position indication Series MSU; Suitable for Knife gate valve; Mounted inductive proximity switch, 10...30VDC (2 Pieces); Cable length 2m
