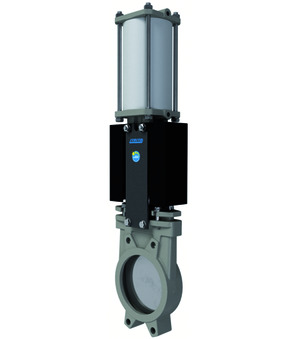

A1N6I2-5-100-PI
Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; With reinforced fixing ring and abrasion protection; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; Prepared for 2 inductive limit switches M18; DN 100mm; Length 50mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 12.0 Kg
Short Itemnumber: A1N6I25100PI
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; with reinforced fixing ring and abrasion protection; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; prepared for 2 inductive limit switches M18; DN 100mm; length 50mm; pressure range 0...10bar
