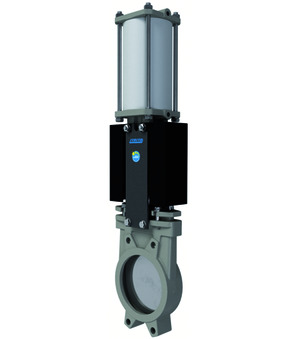

Knife gate valve with double acting actuator A1N2I6-G-250-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed silicone; packing PTFE-synthetic/silicone; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+200°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0…8bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 48.0 Kg
Short Itemnumber: A1N2I6G250PI
Country of origin: Spain
Weight: 48.0 Kg
Short Itemnumber: A1N2I6G250PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed silicone; packing PTFE-synthetic/silicone; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+200°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0…8bar
| dimension | |
|---|---|
| DN | 250 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...8 bar |
No spare parts are available for this product.
