STASTO Allgemeine Preisliste (EUR)
  1. Products
  2. A1N2I3-5V-100-ABS40-CS02400-6-14123-0000-S
A1N2I3-5V-100-ABS40-CS02400-6-14123-0000-S

A1N2I3-5V-100-ABS40-CS02400-6-14123-0000-S

A1N2I3-5V-100

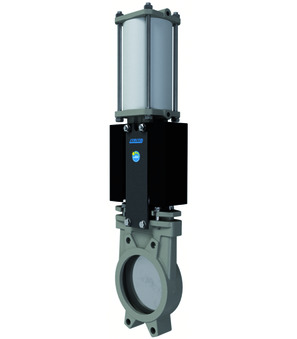

Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+180°C; DN 100mm; Length 50mm; Pressure range 0-10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818063
Country of origin: Spain
Weight: 11.82 Kg
Short Itemnumber: A1N2I35V100ABS40CS024006141230000S
https://www.stasto.eu/web/image/product.template/184500/image_1920?unique=f96ddcc

A1N2I3-5V-100
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; soft sealed FKM; packing PTFE-synthetic/FKM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature 0...+180°C; DN 100mm; length 50mm; pressure range 0-10bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    Data Sheets
    2
    Data sheet_6-14123-0000-S_EN.pdf
    6-14123-0000-S
    Download
    Data sheet_Coil Type CS_EN.pdf
    CS02400
    Download
    CAD / 3D
    3
    CADSTEP_6141230000S.stp
    6-14123-0000-S
    Download
    CADSTEP_ABS40.stp
    ABS40
    Download
    CADSTEP_CS02400.stp
    CS02400
    Download

    ZIP
    Datové listy
    2
    Datový list_6-14123-0000-S_CS.pdf
    6-14123-0000-S
    Download
    Datový list_magnetická cívka typ CS_CS.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Datablad_Magnetspole Type CS_DA_DK.pdf
    CS02400
    Download

    ZIP
    Datenblätter
    2
    Datenblatt_6-14123-0000-S_DE.pdf
    6-14123-0000-S
    Download
    Datenblatt_Magnetspule Typ CS_DE.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος CS_EL_GR.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Ficha técnica_Bobina magnética Tipo CS_ES.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Tietolehti_Magneettikela Tyyppi CS_FI.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Fiche technique_Bobine électromagnétique Type CS_FR.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Podatkovni list_Magnetska zavojnica Tip CS_HR.pdf
    CS02400
    Download

    ZIP
    Adatlapok
    2
    Adatlap_6-14123-0000-S_HU.pdf
    6-14123-0000-S
    Download
    Adatlap_mágnestekercs típus CS_HU.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Scheda tecnica_Bobina magnetica Tipo CS_IT.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Datablad_Magnetspole Type CS_NB_NO.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Datasheet_Magneetspoel Type CS_NL.pdf
    CS02400
    Download

    ZIP
    Karty katalogowe
    2
    Arkusz danych_6-14123-0000-S_PL.pdf
    6-14123-0000-S
    Download
    Arkusz danych_cewka elektromagnetyczna typ CS_PL.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Fișă de date_Bobină solenoid tip CS_RO.pdf
    CS02400
    Download

    ZIP
    Podatkovni listi
    2
    Podatkovni list_6-14123-0000-S_SL.pdf
    6-14123-0000-S
    Download
    Podatkovni list_Magnetna tuljava Tip CS_SL.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    2
    Tehnički list_6-14123-0000-S_SRLATIN.pdf
    6-14123-0000-S
    Download
    Tehnički list_namotaj tip CS_SRLATIN.pdf
    CS02400
    Download

    ZIP
    Data Sheets
    1
    Datablad_Magnetspole Typ CS_SV.pdf
    CS02400
    Download
    A1N2I3-5V-100
    A1N2I3-5V-100 x 1.0
    A1N2I3-5V-100
    Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+180°C; DN 100mm; Length 50mm; Pressure range 0-10bar
    Add to Cart
    Mounted pilot valve ABS40
    ABS40 x 1.0
    Mounted pilot valve ABS40
    Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
    Add to Cart
