A1N2I2-5-65-PI-ABS40-CS02400-6-14423-0525

Price.

876,12 €

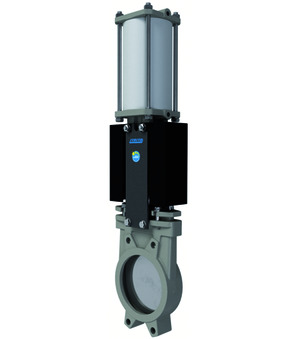

Knife gate valve with double acting actuator Series A1N-PI Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Knife gate valves - pneumatically operated
  5. Knife gate valve with double acting actuator Series A1N-PI
  6. A1N2I2-5-65-PI-ABS40-CS02400-6-14423-0525
A1N2I2-5-65-PI-ABS40-CS02400-6-14423-0525
A1N2I2-5-65-PI-ABS40-CS02400-C001-31-LVCV30-2
A1N2I2-5-65-PI-ABS40-CS02400-C001-31-LVCV30-2
888,91 €
888,91 €
A1N2I2-5-65-PI-ABS40-CS23050-6-14123-0000-S
A1N2I2-5-65-PI-ABS40-CS23050-6-14123-0000-S
872,04 €
872,04 €

A1N2I2-5-65-PI-ABS40-CS02400-6-14423-0525

A1N2I2-5-65-PI
Knife gate valve with double acting actuator Series A1N-PI; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; Length 40mm; Pressure range 0...10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818063
Country of origin: Spain
Weight: 8.07 Kg
Short Itemnumber:A1N2I2565PIABS40CS024006144230525
https://www.stasto.eu/web/image/product.template/206553/image_1920?unique=f967a21

A1N2I2-5-65-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; length 40mm; pressure range 0...10bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14423-0525
connector; connector size 16mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

876,12 € 876.12 EUR 876,12 €

price on request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Electrical connection
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 40 mm
Designs
Connector size 16 mm
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC
pressure
Pressure range 0...10 bar
characteristics
Coil CS
