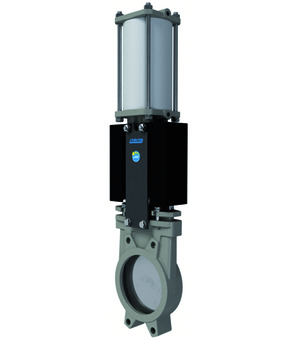

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 500mm; Length 110mm; Pressure range 0…4bar
Country of origin: Spain
Weight: 257.0 Kg
Short Itemnumber: A1N2I25500PM
knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 mechanical switches MSU01A; DN 500mm; length 110mm; pressure range 0…4bar
Technical specifications
| Pressure range | 0...4 bar |
|---|---|
| DN | 500 mm |
| Length | 110 mm |
| Pressure range | 0...4 bar |
| DN | 500 mm |
| Length | 110 mm |
A1N2I2-5-500-PM
