STASTO Allgemeine Preisliste (EUR)

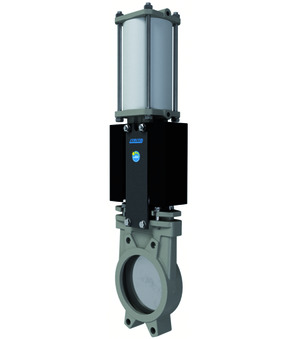

Knife gate valve with double acting actuator A1N2I2-5-150-PM

Knife gate valve with double acting actuator A1N2I2-5-150-PM

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 150mm; Length 60mm; Pressure range 0…8bar

Intrastat No.: 84818063
Country of origin: Spain Made in Europe
Weight: 22.0 Kg
Short Itemnumber: A1N2I25150PM
https://www.stasto.eu/web/image/product.template/100053/image_1920?unique=a4dbc74

knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 mechanical switches MSU01A; DN 150mm; length 60mm; pressure range 0…8bar

1.419,70 € 1419.7 EUR 1.419,70 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Pressure range 0...8 bar
DN 150 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
Pressure range 0...8 bar
DN 150 mm
Length 60 mm

A1N2I2-5-150-PM

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
No spare parts are available for this product.
