A1N2H6-G-250-PIB-01

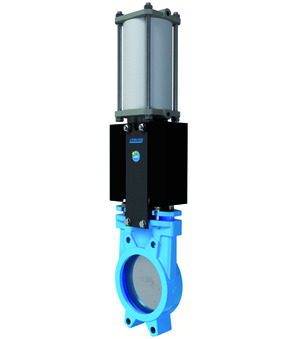

Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed Silicone; Packing PTFE-Synthetic/Silicone; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+200°C; Prepared for 2 inductive switches; DN 250mm; Length 70mm; Pressure range 0…8bar; Sliding guide PTFE; High temperature-Coating
Country of origin: Spain
Weight: 58.0 Kg
Short Itemnumber: A1N2H6G250PIB01
knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed silicone; packing PTFE-synthetic/silicone; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+200°C; prepared for 2 inductive switches; DN 250mm; length 70mm; pressure range 0…8bar; sliding guide PTFE; high temperature-coating
