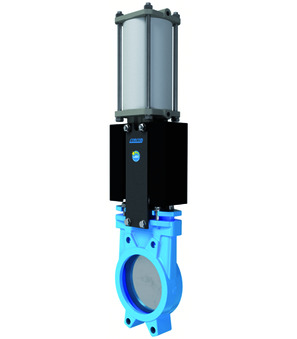

Knife gate valve with double acting actuator A1N2H2-5-600-PIB

Knife gate valve with double acting actuator A1N2H2-5-600-PIB

Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 600mm; Length 110mm; Pressure range 0...3bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 25.59 Kg
Short Itemnumber: A1N2H25600PIB
https://www.stasto.eu/web/image/product.template/156832/image_1920?unique=c177c47

knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 600mm; length 110mm; pressure range 0...3bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 600 mm
Length 110 mm
pressure
Pressure range 0...3 bar
