A1N1H1-7-150-B

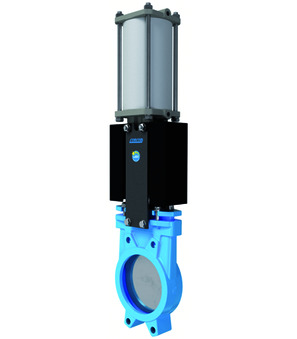

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal sealing; Packing PTFE; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -30...+200 °C; DN 150mm; Length 60mm; Pressure range 0-10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 12.02 Kg
Short Itemnumber: A1N1H17150B
Country of origin: Spain
Weight: 12.02 Kg
Short Itemnumber: A1N1H17150B
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; metal sealing; packing PTFE; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -30...+200 °C; DN 150mm; length 60mm; pressure range 0-10bar
No Specifications
No spare parts are available for this product.
