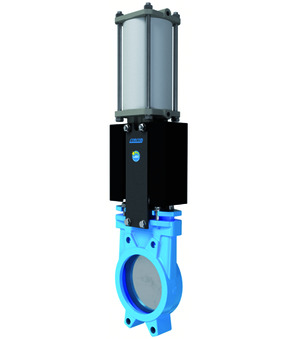

A1N1H1-5S-200-PIB-01
Knife gate valve with double acting actuator; Wafer type; Body EN-GJS-500-7; Gate 1.4301 Mirror polished; Metal seal with abrasion protection; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; DN 200mm; Prepared for 2 inductive switches MSU03, MSU04, MSU05; Length 66mm; Pressure range 0-8bar
Country of origin: Spain
Weight: 35.1 Kg
Short Itemnumber: A1N1H15S200PIB01
knife gate valve with double acting actuator; wafer type; body EN-GJS-500-7; gate AISI 304 mirror polished; metal seal with abrasion protection; packing PTFE-synthetic/EPDM with copper scraper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; DN 200mm; prepared for 2 inductive switches MSU03, MSU04, MSU05; length 66mm; pressure range 0-8bar
