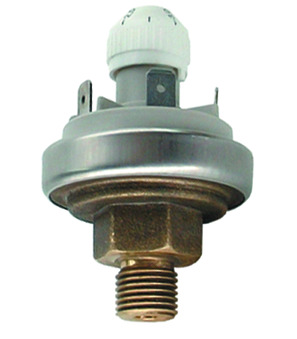

Vacuum switch Series 901.7; Change-over contact; Diaphragm NBR; Setting scale; 250VAC/6A; 24VDC/2A; Male thread G1/4"; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); Range of adjustment -200...-500mbar; Overpressure protection 1bar; Hysteresis range 75mbar
Country of origin: Germany
Short Itemnumber: 901.77
vacuum switch series 901.7; change-over contact; diaphragm NBR; setting scale; 250VAC/6A; 24VDC/2A; male thread G1/4"; application: air, water, neutral oils; protection class see protection cap (max. IP65); range of adjustment -200...-500mbar; overpressure protection 1bar; hysteresis range 75mbar
Technical specifications
| Connection | 1/4" |
|---|---|
| Range of adjustment | -300...-700 mbar |
| Overpressure protection | 1 bar |
| Hysteresis range | 75 mbar |
| Connection | 1/4" |
| Range of adjustment | -300...-700 mbar |
| Overpressure protection | 1 bar |
| Hysteresis range | 75 mbar |
| Brand | STASTO |
901.77
