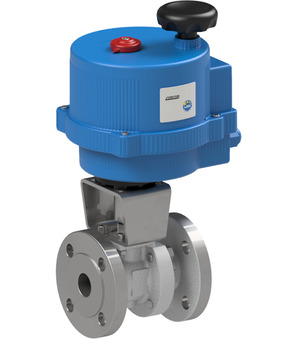

Flanged ball valve with electrical actuator 8E053004-15

Flanged ball valve with electrical actuator 8E053004-15

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Operating time 10s; Voltage 100-240VAC

Flanschkugelhahn mit Elektroantrieb Serie 8E053
Flanschkugelhahn mit Elektroantrieb Serie 8E053
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.23 Kg
Short Itemnumber: 8E05300415
https://www.stasto.eu/web/image/product.template/79137/image_1920?unique=f2dcbea

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Operating time 10s; Voltage 100-240VAC

851,00 € 851.0 EUR 851,00 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm
Operating time 10 s
Voltage 100-240VAC

8E053004-15

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 760000-15
760000-15 x 1.0 Pcs
Flanged ball valve 760000-15
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm
Electrical actuator VB015-H
VB015-H x 1.0 Pcs
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
RI3519 x 1.0 Pcs
RI3519
Mounting bracket; F05/F03-F04; Bolt 11-7
Accessory Products
Flanged ball valve 760000-15
760000-15
Flanged ball valve 760000-15
DN
15 mm
Flange
PN40
Design
ATEX
Pressure range
0...40 bar
