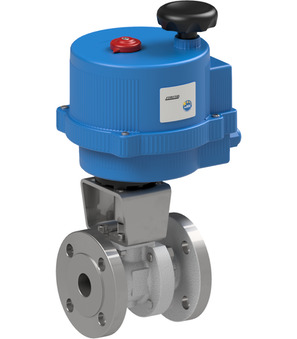

Flanged ball valve with electrical actuator 8E053002-50

Flanged ball valve with electrical actuator 8E053002-50

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm; Operating time 9s; Voltage 24VAC/DC

Flanschkugelhahn mit Elektroantrieb Serie 8E053
Flanschkugelhahn mit Elektroantrieb Serie 8E053
Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.21 Kg
Short Itemnumber: 8E05300250
https://www.stasto.eu/web/image/product.template/76230/image_1920?unique=8bc9da3

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm; Operating time 9s; Voltage 24VAC/DC

1.637,50 € 1637.5 EUR 1.637,50 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
Operating time 9 s
Voltage 24VAC/DC

8E053002-50

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 760000-50
760000-50 x 1.0 Pcs
Flanged ball valve 760000-50
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI4039 x 1.0 Pcs
RI4039
Mounting bracket; F07/F07; Bolt 14-14
Accessory Products
Flanged ball valve 760000-50
760000-50
Flanged ball valve 760000-50
DN
50 mm
Flange
PN40
Design
ATEX
Pressure range
0...40 bar
