STASTO Allgemeine Preisliste (EUR)

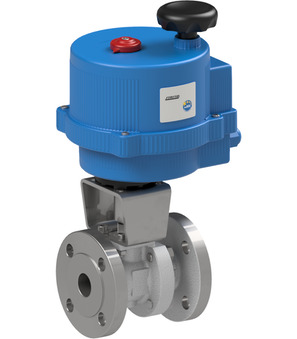

Flanged ball valve with electrical actuator 8E053002-150

Flanged ball valve with electrical actuator 8E053002-150

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Operating time 50s; Voltage 24VAC/DC

Flanschkugelhahn mit Elektroantrieb Serie 8E053
Flanschkugelhahn mit Elektroantrieb Serie 8E053
Intrastat No.: 84818081
Country of origin: Italy
Weight: 78.39 Kg
Short Itemnumber: 8E053002150
https://www.stasto.eu/web/image/product.template/76225/image_1920?unique=8bc9da3

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Operating time 50s; Voltage 24VAC/DC

6.171,00 € 6171.0 EUR 6.171,00 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 150 mm
Flange PN16
Length 350 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 150 mm
Flange PN16
Length 350 mm
Operating time 50 s
Voltage 24VAC/DC

8E053002-150

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 760000-150
760000-150 x 1.0 Pcs
Flanged ball valve 760000-150
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm
Electrical actuator VB350-L
VB350-L x 1.0 Pcs
Electrical actuator VB350-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 24VAC/DC; Protection class IP67
RI3553 x 1.0 Pcs
RI3553
Mounting bracket For Ball valve; F12-F10/F14; Bolt 22-30
Accessory Products
Flanged ball valve 760000-150
760000-150
Flanged ball valve 760000-150
DN
150 mm
Flange
PN16
Design
ATEX
Pressure range
0...16 bar
