Ball valve with electrical actuator 8E033004-3"

Price.

1.521,50 €
Ball valve with electrical actuator Series 8E033 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E033
  6. 8E033004-3"

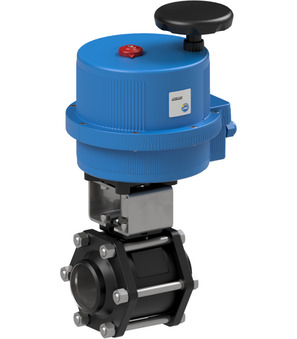

Ball valve with electrical actuator 8E033004-3"
Ball valve with electrical actuator 8E033002-3"
Ball valve with electrical actuator 8E033002-3"
1.457,10 €
1.457,10 €
Ball valve with electrical actuator 8E033002-4"
Ball valve with electrical actuator 8E033002-4"
2.061,30 €
2.061,30 €

Ball valve with electrical actuator 8E033004-3"

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.37 Kg
Short Itemnumber:8E0330043
https://www.stasto.eu/web/image/product.template/76216/image_1920?unique=bbc91d7

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

1.521,50 € 1521.5 EUR 1.521,50 €

price on request

  • Butt weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Butt weld ends 80 mm
DN 80 mm
Length 180 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s
