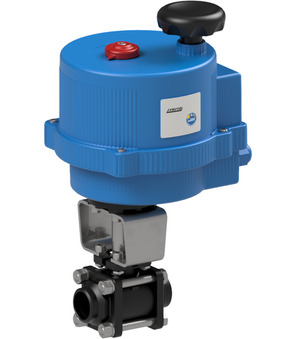

Ball valve with electrical actuator 8E033004-3/4"

Ball valve with electrical actuator 8E033004-3/4"

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.49 Kg
Short Itemnumber:8E03300434
https://www.stasto.eu/web/image/product.template/79135/image_1920?unique=bbc91d7

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 100-240VAC

575,90 € 575.9 EUR 575,90 €

price on request

  • Butt weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Butt weld ends 20 mm
DN 20 mm
Length 76 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB015H
Operating time 10 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with electrical actuator Series 8E033_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Ball valve with electrical actuator Series 8E033_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E03300434.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s elektropohonem série 8E033_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s elektropohonem série 8E033_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med elektrisk aktuator Serie 8E033_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Elektroantrieb Serie 8E033_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E033_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά 8E033_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador eléctrico Serie 8E033_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili sähkötoimilaitteella Sarja 8E033_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série 8E033_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s električnim pogonom Serija 8E033_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat 8E033_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E033_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore elettrico Serie 8E033_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med elektrisk aktuator Serie 8E033_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met elektrische aandrijving Serie 8E033_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem elektrycznym Seria 8E033_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E033_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu sferă cu actuator electric serie 8E033_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa z električnim pogonom serija 8E033_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E033_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa električnim aktuatorom serije 8E033_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E033_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med elektriskt ställdon Serie 8E033_SV.pdf
Download
Ball valve made of steel 20-0-40-76
715000-20 x 1.0
Ball valve made of steel 20-0-40-76
Ball valve made of steel Series 715000; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
