Ball valve with electrical actuator 8E033002-21/2"

Price.

1.286,90 €

Home
Search
⁰
Wishlist
Account

Ball valve with electrical actuator Series 8E033 Store

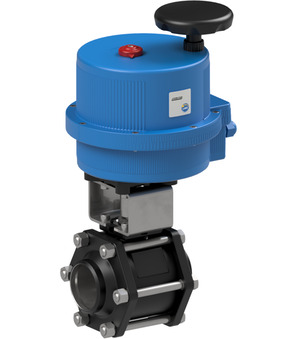

Ball valve with electrical actuator 8E033002-21/2"

Ball valve with electrical actuator 8E033002-21/2"

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.48 Kg
Short Itemnumber:8E033002212

Ball valve with electrical actuator Series 8E033; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

1.286,90 € 1286.9 EUR 1.286,90 €

Butt weld ends
- 65 mm
DN
- 65 mm
Length
- 153 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s

This combination does not exist.

Availability:

Adaugă în coș

dimension
Butt weld ends	65 mm
DN	65 mm
Length	153 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110L
Operating time	27 s

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Ball valve with electrical actuator Series 8E033_EN.pdf

Declarations of Conformity

1

Declaration of conformity_Ball valve with electrical actuator Series 8E033_EN.pdf

CAD / 3D

1

CADSTEP_8E033002212.stp

Datové listy

1

Datový list_kulový kohout s elektropohonem série 8E033_CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_kulový kohout s elektropohonem série 8E033_CS.pdf

Data Sheets

1

Datablad_Kugleventil med elektrisk aktuator Serie 8E033_DA_DK.pdf

Datenblätter

1

Datenblatt_Kugelhahn mit Elektroantrieb Serie 8E033_DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E033_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά 8E033_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con actuador eléctrico Serie 8E033_ES.pdf

Data Sheets

1

Tietolehti_Palloventtiili sähkötoimilaitteella Sarja 8E033_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série 8E033_FR.pdf

Data Sheets

1

Podatkovni list_Kuglasti ventil s električnim pogonom Serija 8E033_HR.pdf

Adatlapok

1

Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat 8E033_HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E033_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera con attuatore elettrico Serie 8E033_IT.pdf

Data Sheets

1

Datablad_Kuleventil med elektrisk aktuator Serie 8E033_NB_NO.pdf

Data Sheets

1

Datasheet_Kogelkraan met elektrische aandrijving Serie 8E033_NL.pdf

Karty katalogowe

1

Arkusz danych_zawór kulowy z napędem elektrycznym Seria 8E033_PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E033_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu sferă cu actuator electric serie 8E033_RO.pdf

Podatkovni listi

1

Podatkovni list_Krogelna pipa z električnim pogonom serija 8E033_SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E033_SL.pdf

Data Sheets

1

Tehnički list_kuglasti ventil sa električnim aktuatorom serije 8E033_SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E033_SRLATIN.pdf

Data Sheets

1

Datablad_Kulventil med elektriskt ställdon Serie 8E033_SV.pdf

Ball valve made of steel 715000-65

715000-65 x 1.0

Ball valve made of steel 715000-65

Ball valve made of steel Series 715000; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm

Electrical actuator VB110-L

VB110-L x 1.0

Electrical actuator VB110-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

RI3003 x 1.0

RI3003

Mounting bracket; F07/F07; 17-14
