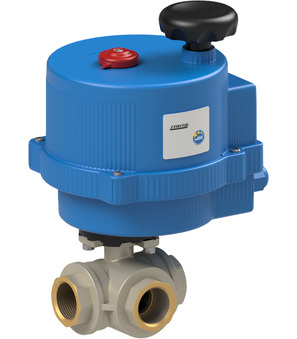

Ball valve with electrical actuator 8E028004-2"

Ball valve with electrical actuator 8E028004-2"

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 2"; DN 50mm; Pressure range 0-10bar; Length 166mm; Operating time 9s; Voltage 100-240VAC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.6 Kg
Short Itemnumber: 8E0280042
https://www.stasto.eu/web/image/product.template/66395/image_1920?unique=a7d2b74

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 2"; DN 50mm; Pressure range 0-10bar; Length 166mm; Operating time 9s; Voltage 100-240VAC; Ball T

1.644,20 € 1644.2 EUR 1.644,20 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 2"
DN 50 mm
Length 166 mm
Designs
Ball T
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...10 bar
characteristics
Actuator VB060H
Operating time 9 s
