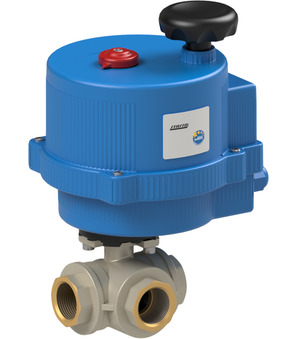

Ball valve with electrical actuator 8E028004-1"

Price.

823,62 €
Ball valve with electrical actuator Series 8E029, 8E028 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E029, 8E028
  6. 8E028004-1"
Ball valve with electrical actuator 8E028004-1"
Ball valve with electrical actuator 8E028002-1"
Ball valve with electrical actuator 8E028002-1"
757,91 €
757,91 €
Ball valve with electrical actuator 8E014002-4"
Ball valve with electrical actuator 8E014002-4"
1.886,09 €
1.886,09 €

Ball valve with electrical actuator 8E028004-1"

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1"; DN 25mm; Pressure range 0-16bar; Length 105mm; Operating time 8s; Voltage 100-240VAC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.03 Kg
Short Itemnumber:8E0280041
https://www.stasto.eu/web/image/product.template/66392/image_1920?unique=7bd5d11

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1"; DN 25mm; Pressure range 0-16bar; Length 105mm; Operating time 8s; Voltage 100-240VAC; Ball T

823,62 € 823.62 EUR 823,62 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1"
DN 25 mm
Length 105 mm
Designs
Ball T
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB030H
Operating time 8 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with electrical actuator Series 8E029, 8E028_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E0280041.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s elektropohonem série 8E029, 8E028_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med elektrisk aktuator Serie 8E029, 8E028_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Elektroantrieb Serie 8E029, 8E028_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά 8E029, 8E028_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador eléctrico Serie 8E029, 8E028_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili sähkötoimilaitteella Sarja 8E029, 8E028_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série 8E029, 8E028_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s električnim pogonom Serija 8E029, 8E028_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat 8E029, 8E028_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore elettrico Serie 8E029, 8E028_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med elektrisk aktuator Serie 8E029, 8E028_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met elektrische aandrijving Serie 8E029, 8E028_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem elektrycznym Seria 8E029, 8E028_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu sferă cu actuator electric serie 8E029, 8E028_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa z električnim pogonom serija 8E029, 8E028_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa električnim aktuatorom serije 8E029, 8E028_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med elektriskt ställdon Serie 8E029, 8E028_SV.pdf
Download
Ball valve made of brass 3500-1"
3500-1" x 1.0
Ball valve made of brass 3500-1"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 1"; Nominal diameter 25mm; Pressure range 0-16bar; Length 105mm; Ball T
Add to Cart
Electrical actuator VB030-H
VB030-H x 1.0
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
