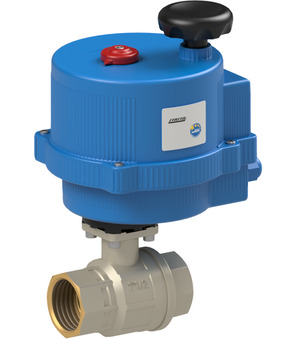

Ball valve with electrical actuator 8E014002-1/2"

Price.

398,60 €
Ball valve with electrical actuator Series 8E014 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E014
  6. 8E014002-1/2"
Ball valve with electrical actuator 8E014002-1/2"
  2. STASTO Store
  3. Ball valve with electrical actuator 8E014002-1/2"
Ball valve with electrical actuator 8E014004-3/8"
Ball valve with electrical actuator 8E014004-3/8"
466,50 €
466,50 €
Ball valve with electrical actuator 8E028004-3/8"
Ball valve with electrical actuator 8E028004-3/8"
505,50 €
505,50 €

Ball valve with electrical actuator 8E014002-1/2"

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.743 Kg
Short Itemnumber:8E01400212
https://www.stasto.eu/web/image/product.template/66438/image_1920?unique=5acce66

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 24VAC/DC

398,60 € 398.6 EUR 398,60 €

price on request

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1/2"
DN 15 mm
Length 67 mm
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB015L24
Operating time 10 s
