STASTO Allgemeine Preisliste (EUR)
Ball valve with electrical actuator Series 8E004 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E004
  6. 8E004004-3/8"

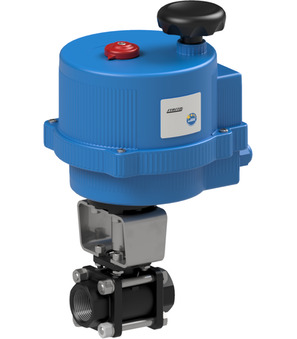

Ball valve with electrical actuator 8E004004-3/8"

Ball valve with electrical actuator 8E004004-3/8"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/8"; DN 10mm; Pressure range 0-64bar; Length 57mm; Operating time 10s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.833 Kg
Short Itemnumber: 8E00400438
https://www.stasto.eu/web/image/product.template/79097/image_1920?unique=bbc91d7

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/8"; DN 10mm; Pressure range 0-64bar; Length 57mm; Operating time 10s; Voltage 100-240VAC

558,70 € 558.7 EUR 558,70 €

price on request

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 3/8"
DN 10 mm
Length 57 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB015H
Operating time 10 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Ball valve with electrical actuator Series 8E004_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E00400438.stp
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s elektropohonem série 8E004_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E004_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E004_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E004_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E004_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E004_SRLATIN.pdf
Download
Ball valve made of steel 3/8"-10-0-64-57
713000-3/8" x 1.0
Ball valve made of steel 3/8"-10-0-64-57
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/8"; Nominal diameter 10mm; Pressure range 0-64bar; Length 57mm
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
Add to Cart
