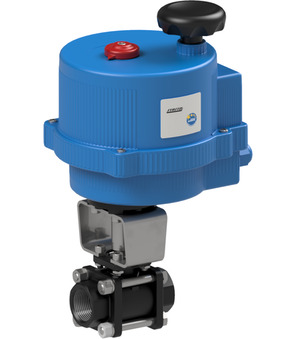

Ball valve with electrical actuator 8E004004-11/4"

Ball valve with electrical actuator 8E004004-11/4"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/4"; DN 32mm; Pressure range 0-25bar; Length 106mm; Operating time 8s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.19 Kg
Short Itemnumber: 8E004004114
https://www.stasto.eu/web/image/product.template/76081/image_1920?unique=bbc91d7

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/4"; DN 32mm; Pressure range 0-25bar; Length 106mm; Operating time 8s; Voltage 100-240VAC

812,80 € 812.8 EUR 812,80 €

price on request

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1 1/4"
DN 32 mm
Length 106 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...25 bar
characteristics
Actuator VB030H
Operating time 8 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Ball valve with electrical actuator Series 8E004_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E004004114.stp
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s elektropohonem série 8E004_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E004_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E004_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E004_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E004_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E004_SRLATIN.pdf
Download
Ball valve made of steel 11/4"-32-0-25-106
713000-11/4" x 1.0
Ball valve made of steel 11/4"-32-0-25-106
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm
Add to Cart
Electrical actuator VB030-H
VB030-H x 1.0
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
