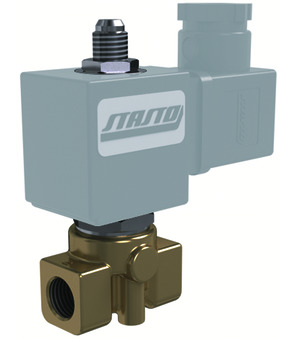

3/2-way solenoid valve 31A3AV15

3/2-way solenoid valve 31A3AV15

3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm

3/2-Wege-Magnetventil Serie 31A
3/2-Wege-Magnetventil Serie 31A
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.17 Kg
Short Itemnumber: 31A3AV15
https://www.stasto.eu/web/image/product.template/3948/image_1920?unique=d55dc52

3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm

54,90 € 54.9 EUR 54,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Cable length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 1,5/2,5 mm
Pressure AC/DC 0...15 bar
Length 40 mm
Seal FKM
All specifications (6)
Documents
Data sheets, drawings and CAD files
DN 1,5/2,5 mm
Pressure AC/DC 0...15 bar
Length 40 mm
Seal FKM
Medium temperature -10...+120 °C
Female thread G 1/8"

31A3AV15
