STASTO Allgemeine Preisliste (EUR)

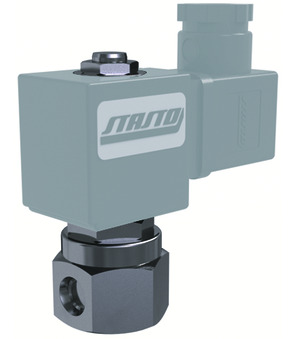

21L1K1V25-BDA08223DS-C003-32-LV-1

21L1K1V25-BDA08223DS-C003-32-LV-1

21L1K1V25
2/2-way solenoid valve Series 21L; Directly operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Length 30mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

2/2-Wege-Magnetventil Serie 21L
2/2-Wege-Magnetventil Serie 21L
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber: 21L1K1V25BDA08223DSC00332LV1
https://www.stasto.eu/web/image/product.template/191407/image_1920?unique=0b4fc07

21L1K1V25
2/2-way solenoid valve series 21L; directly operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/8"; DN 2,5mm; pressure AC 0-14bar; pressure DC 0-9bar; length 30mm
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz
C003-32-LV-1
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

166,30 € 166.3 EUR 166,30 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/8"
DN 2,5 mm
Length 30 mm
Pressure AC 0...14 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/8"
DN 2,5 mm
Length 30 mm
Pressure AC 0...14 bar
Pressure DC 0...9 bar
Seal FKM
Medium temperature -10...+120 °C
Voltage 220-230V/50-60Hz
Voltage type AC
Design With integrated LED-yellow and VDR
Approval CE

21L1K1V25-BDA08223DS-C003-32-LV-1

Documents

9 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

3
English
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

3
French / Français
ZIP

Data Sheets

3

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

3
2/2-way solenoid valve 21L1K1V25
21L1K1V25 x 1.0 Pcs
2/2-way solenoid valve 21L1K1V25
2/2-way solenoid valve Series 21L; Directly operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Length 30mm
BDA08223DS
BDA08223DS x 1.0 Pcs
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
C003-32-LV-1 x 1.0 Pcs
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
