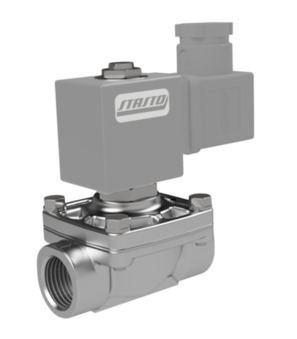

2/2-way solenoid valve 21IH6K1B250
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal NBR; Connector size 32mm; Medium -10...+90°C; G 1"; DN 25mm; Pressure AC 0...14bar; Pressure DC 0...3bar; Length 90mm; Standard coil BDA
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.75 Kg
Short Itemnumber: 21IH6K1B250
Country of origin: Italy
Weight: 0.75 Kg
Short Itemnumber: 21IH6K1B250
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal NBR; connector size 32mm; medium -10...+90°C; G 1"; DN 25mm; pressure AC 0...14bar; pressure DC 0...3bar; length 90mm; standard coil BDA
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 25 mm |
| Length | 90 mm |
| pressure | |
| Pressure AC | 0...14 bar |
| Pressure DC | 0...3 bar |
| characteristics | |
| Coil | BDA |
No spare parts are available for this product.
