STASTO Allgemeine Preisliste (EUR)
21IH4K1V160-GDV-GDV14230A3-C003-31-9-01

21IH4K1V160-GDV-GDV14230A3-C003-31-9-01

21IH4K1V160-GDV

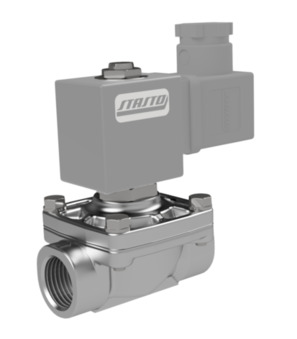

2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-14bar; medium -10/+140°C; length 68mm; standard coil GDV
GDV14230A3
coil ATEX-II 3G Ex nA IIC T3 Gc/ II 3D Ex tc IIIC T200°C Dc IP65; voltage 230V/50Hz; 240V60Hz; 32mm
C003-31-9-01
connector; connector size 32mm; 0...250VAC/300VDC; ATEX II 2G IIC T6 Gb; II 2D Ex tb IIIC T85°C Db IP65/IP67

2/2-Wege-Magnetventil Serie 21IH
2/2-Wege-Magnetventil Serie 21IH

Country of origin: Italy Made in Europe
Weight: 0.83 Kg
Short Itemnumber: 21IH4K1V160GDVGDV14230A3C00331901
https://www.stasto.eu/web/image/product.template/233475/image_1920?unique=6988aa4

21IH4K1V160-GDV
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-14bar; medium -10/+140°C; length 68mm; standard coil GDV
GDV14230A3
coil ATEX-II 3G Ex nA IIC T3 Gc/ II 3D Ex tc IIIC T200°C Dc IP65; voltage 230V/50Hz; 240V60Hz; 32mm
C003-31-9-01
connector; connector size 32mm; 0...250VAC/300VDC; ATEX II 2G IIC T6 Gb; II 2D Ex tb IIIC T85°C Db IP65/IP67

388,70 € 388.7 EUR 388,70 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 16 mm
Length 68 mm
Pressure AC 0...14 bar
All specifications (9)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 16 mm
Length 68 mm
Pressure AC 0...14 bar
Pressure DC 0...14 bar
Medium temperature -10...+140 °C
Voltage 230V/50Hz-240V/60Hz
Design ATEX
Approval ATEX II 3 G/D

21IH4K1V160-GDV-GDV14230A3-C003-31-9-01

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
2/2-way solenoid valve 21IH4K1V160-GDV
21IH4K1V160-GDV x 1.0 Pcs
2/2-way solenoid valve 21IH4K1V160-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Medium -10/+140°C; Length 68mm; Standard coil GDV
GDV14230A3
GDV14230A3 x 1.0 Pcs
GDV14230A3
Coil ATEX-II 3G Ex nA IIC T3 Gc/ II 3D Ex tc IIIC T200°C Dc IP65; Voltage 230V/50Hz; 240V/60Hz; 32mm
C003-31-9-01 x 1.0 Pcs
C003-31-9-01
Connector; Connector size 32mm; 0...250VAC/300VDC; ATEX II 2G IIC T6 Gb; II 2D Ex tb IIIC T85°C Db IP65/IP67
