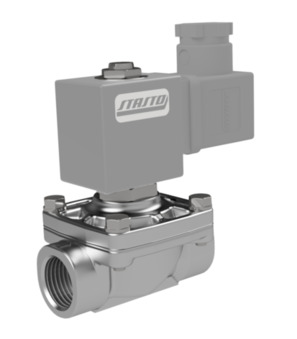

2/2-way solenoid valve 21IH4K1V160-GDV-GDV14024DY-C003-32-LV-2

2/2-way solenoid valve 21IH4K1V160-GDV-GDV14024DY-C003-32-LV-2

21IH4K1V160-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Medium -10/+140°C; Length 68mm; Standard coil GDV
GDV14024DY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24V/50-60Hz; Approval CSA/UL/VDE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie 21IH
2/2-Wege-Magnetventil Serie 21IH
Intrastat No.: 84812090
Country of origin: Italy Made in Europe
Weight: 0.83 Kg
Short Itemnumber: 21IH4K1V160GDVGDV14024DYC00332LV2
https://www.stasto.eu/web/image/product.template/194903/image_1920?unique=6988aa4

21IH4K1V160-GDV
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-14bar; medium -10/+140°C; length 68mm; standard coil GDV
GDV14024DY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 24V/50-60Hz; approval CSA/UL/VDE
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

340,50 € 340.5 EUR 340,50 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 16 mm
Length 68 mm
Pressure AC 0...14 bar
All specifications (9)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 16 mm
Length 68 mm
Pressure AC 0...14 bar
Pressure DC 0...14 bar
Medium temperature -10...+140 °C
Voltage 24V/50-60Hz
Design With integrated LED-yellow and VDR
Approval UL/CSA/VDE
