STASTO Allgemeine Preisliste (EUR)

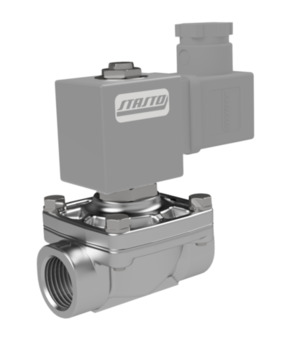

2/2-way solenoid valve 21IH3K1V150-BDA08012CS-C003-32-LV-2

2/2-way solenoid valve 21IH3K1V150-BDA08012CS-C003-32-LV-2

21IH3K1V150
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/8"; DN 15mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 68mm; Standard coil BDA
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie 21IH
2/2-Wege-Magnetventil Serie 21IH
Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.59 Kg
Short Itemnumber: 21IH3K1V150BDA08012CSC00332LV2
https://www.stasto.eu/web/image/product.template/194650/image_1920?unique=6988aa4

21IH3K1V150
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 3/8"; DN 15mm; pressure AC 0-14bar; pressure DC 0-6bar; medium -10/+120°C; length 68mm; standard coil BDA
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

289,00 € 289.0 EUR 289,00 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC 0...14 bar
All specifications (10)
Documents
Data sheets, drawings and CAD files
Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC 0...14 bar
Pressure DC 0...6 bar
Medium temperature -10...+120 °C
Voltage 12VDC
Voltage type DC
Design With integrated LED-yellow and VDR
Approval CE

21IH3K1V150-BDA08012CS-C003-32-LV-2
