STASTO Allgemeine Preisliste (EUR)
2/2-way solenoid valve Series 21H..K0V Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - combined operated
  5. 2/2-way solenoid valve Series 21H..K0V
  6. 21HT6K0V250

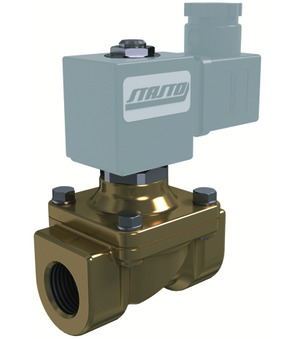

2/2-way solenoid valve 21HT6K0V250

2/2-way solenoid valve 21HT6K0V250

2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 1"; DN 25mm; Pressure AC 0...8bar; Medium -10/+120°C; Length 104mm; Standard coil BDA

Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.02 Kg
Short Itemnumber:21HT6K0V250
https://www.stasto.eu/web/image/product.template/70448/image_1920?unique=eb38ccc

2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 1"; DN 25mm; Pressure AC 0...8bar; Medium -10/+120°C; Length 104mm; Standard coil BDA

165,90 € 165.9 EUR 165,90 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1"
DN 25 mm
Length 104 mm
Designs
Connector size 32 mm
pressure
Pressure AC 0...8 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_2/2-way solenoid valve Series 21H..K0V_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_2/2-way solenoid valves - combined operated_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_2/2-way solenoid valves - combined operated_EN.pdf
Download
CAD / 3D
1
CADSTEP_21HT6K0V250.stp
Download

ZIP
Datové listy
1
Datový list_2/2 cestný elektromagnetický ventil série 21H..K0V_CS.pdf
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_2/2-cestné elektromagnetické ventily - nuceně řízené_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_2/2-cestné elektromagnetické ventily - nuceně řízené_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vejs magnetventil Serie 21H..K0V_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_2/2-Wege-Magnetventil Serie 21H..K0V_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_2/2-Wege Magnetventile - zwangsgesteuert_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_2/2-Wege Magnetventile - zwangsgesteuert_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά 21H..K0V_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula solenoide de 2/2 vías Serie 21H..K0V_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_2/2-tie magneettiventtiili Sarja 21H..K0V_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Électrovanne 2/2 voies Série 21H..K0V_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_2/2-putni elektromagnetski ventil Serija 21H..K0V_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_2/2-es mágnesszelep sorozat 21H..K0V_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_2/2-es elektromos vezérlésű útszelepek - kombinált vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_2/2-es elektromos vezérlésű útszelepek - kombinált vezérléssel_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Elettrovalvola 2/2 vie Serie 21H..K0V_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-veis magnetventil Serie 21H..K0V_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_2/2-weg magneetventiel Serie 21H..K0V_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria 21H..K0V_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_2/2-drogowe zawory elektromagnetyczne - sterowanie wymuszone_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_2/2-drogowe zawory elektromagnetyczne - sterowanie wymuszone_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă electromagnetică cu 2/2 căi serie 21H..K0V_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_2/2-potni magnetni ventil serija 21H..K0V_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_2/2-potni magnetni ventili - prisilno krmiljeni_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_2/2-potni magnetni ventili - prisilno krmiljeni_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_2/2-kraki elektromagnetni ventil serije 21H..K0V_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_2/2 elektromagnetni ventili - kombinovano upravljani_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_2/2 elektromagnetni ventili - kombinovano upravljani_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vägs magnetventil Serie 21H..K0V_SV.pdf
Download
2/2-way solenoid valve 21HT6K0V250-GDV
21HT6K0V250-GDV x 1.0
2/2-way solenoid valve 21HT6K0V250-GDV
2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 1"; DN 25mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+140°C; Length 104mm; Standard coil GDV
Add to Cart
Accessory Products
KTGHT6K0V25
KTGHT6K0V25
KTGHT6K0V25
