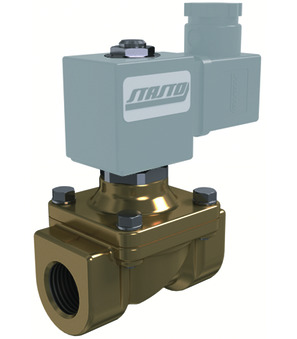

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 3/4"; DN 16mm; pressure AC 0-14bar; pressure DC 0-14bar; length 70mm; standard coil GDV
Technical specifications
| DN | 16 mm |
|---|---|
| Pressure AC | 0...14 bar |
| Length | 70 mm |
| Medium temperature | -10...+90 °C |
| DN | 16 mm |
| Pressure AC | 0...14 bar |
| Length | 70 mm |
| Medium temperature | -10...+90 °C |
| Seal | NBR |
| Female thread | G 3/4" |
| Pressure DC | 0...14 bar |
21HT5K0Y160-GDV
