STASTO Allgemeine Preisliste (EUR)
21HT4K0Y160-BDV08230AY-C003-32-6

21HT4K0Y160-BDV08230AY-C003-32-6

21HT4K0Y160

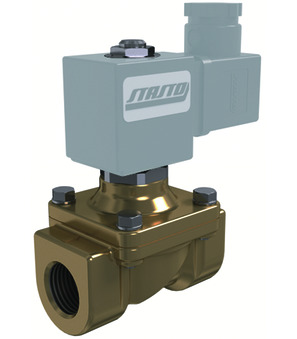

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-2,5bar; Length 70mm; Standard coil BDA
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.15 Kg
Short Itemnumber: 21HT4K0Y160BDV08230AYC003326
https://www.stasto.eu/web/image/product.template/184363/image_1920?unique=e04ce20

21HT4K0Y160
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; length 70mm; standard coil BDA
BDV08230AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 230V/50Hz, 240V/60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

130,90 € 130.9 EUR 130,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
Pressure DC 0...2,5 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 230V/50Hz-240V/60Hz
Approval UL/CSA/VDE
Design Standard
Voltage type AC

21HT4K0Y160-BDV08230AY-C003-32-6
