STASTO Allgemeine Preisliste (EUR)

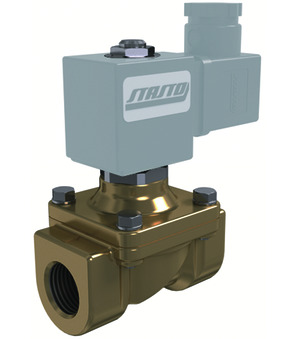

2/2-way solenoid valve 21HT4K0Y160-BDV08024CY

2/2-way solenoid valve 21HT4K0Y160-BDV08024CY

21HT4K0Y160
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; length 70mm; standard coil BDA
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.1 Kg
Short Itemnumber: 21HT4K0Y160BDV08024CY
https://www.stasto.eu/web/image/product.template/226228/image_1920?unique=e04ce20

21HT4K0Y160
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; length 70mm; standard coil BDA
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC

130,60 € 130.6 EUR 130,60 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 16 mm
Length 70 mm
Medium temperature -10...+90 °C
Seal NBR
All specifications (10)
Documents
Data sheets, drawings and CAD files
DN 16 mm
Length 70 mm
Medium temperature -10...+90 °C
Seal NBR
Female thread G 1/2"
Pressure AC 0...14 bar
Pressure DC 0...2,5 bar
Voltage 24VDC
Approval UL/CSA/VDE
Voltage type DC

21HT4K0Y160-BDV08024CY

Documents

7 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

2
English
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

2
French / Français
ZIP

Data Sheets

2

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

2
2/2-way solenoid valve 21HT4K0Y160
21HT4K0Y160 x 1.0 Pcs
2/2-way solenoid valve 21HT4K0Y160
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-2,5bar; Length 70mm; Standard coil BDA
BDV08024CY
BDV08024CY x 1.0 Pcs
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
